Xtar VP4 Plus Dragon Battery Charger - Analyzer - Tester
18650 26650 16650 14500 16340 Li-ion IMR ICR INR & Ni-Mh AA AAA C D
Charge, Refresh, Test your batteries.
Get that Voltage, or Internal Resistance reading , no problem, Dragon VP4 will do it.
Perfect battery charger for advanced battery users.
Compatible with almost all cylindrical battery sizes. Bonus: Ability to charge Battery pack 3S 11.1V
3.6V/3.7V Li-ion / IMR/INR/ICR:
10440 14500 14650 16340 16650 17335 17500
17670 18350 18490 18500 18650 20700
21700 22650 25500 26650 32650
AAAA AAA AA A SC C D
11.1V/3S battery pack
*Ni-MH symbol will flick max 10 minutes when
charging Ni-MH battery due to 0V activation.
Note: Cannot charge protected 20700/
Easy to Operate
Enjoy the all expert features with straightforward - easy to use interface.
Many different functions with three simple button-switches.
You can complete all tasks smoothly and efficiently by using 3 easy buttons only.
FAST up to 2 Amps max charging (with lower levels of charging speeds available).
Automatically or manually select the optimum charging current.
- Input：DC 12V 3A
- 0.5 Amp Constant Current： 0.5 Amp x 4 Charging Channels/Slots
- 1 Amp Constant Current：1.0 Amp x 4 Charging Channels/Slots
- 2 Amp Constant Current：2.0 Amp x 2 Charging Channels/Slots
- Cutoff Voltage=Li-ion : 4.2±0.05V
- Cutoff Voltage=Ni-MH/Ni-CD: 1.45V±0.1V
- USB Output Function：DC 5V Max 2.4 Amp
- 11.1V/3S Battery Pack Charging Current：1 Amp
- Operation Temperature：0-40℃

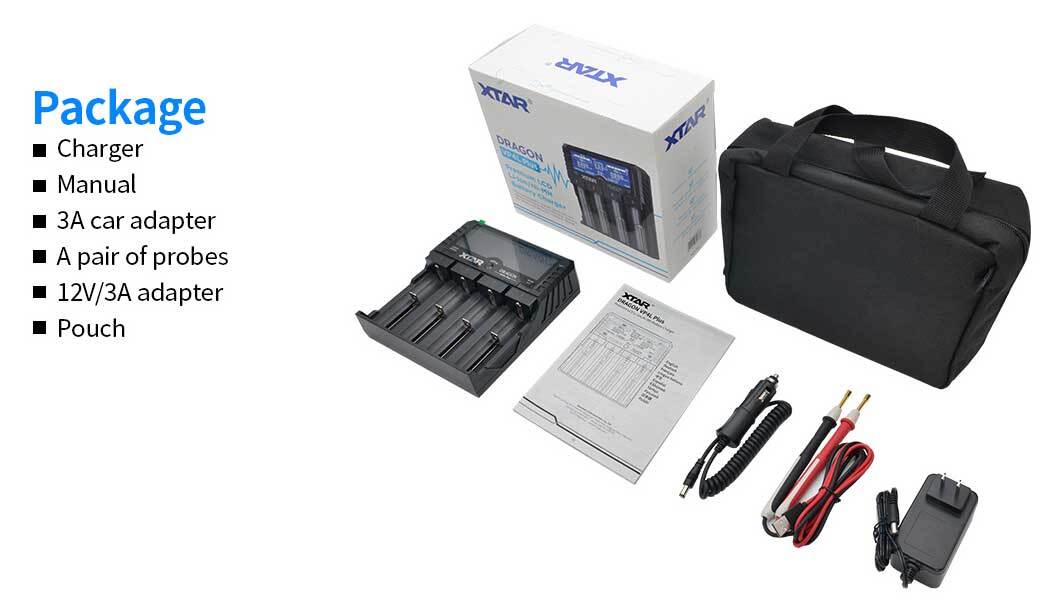

What is in the Box?
- DRAGON VP4 Plus Charger
- Charger Bag
- One pair of probes
- 12V/3A adapter
- 3A car adapter

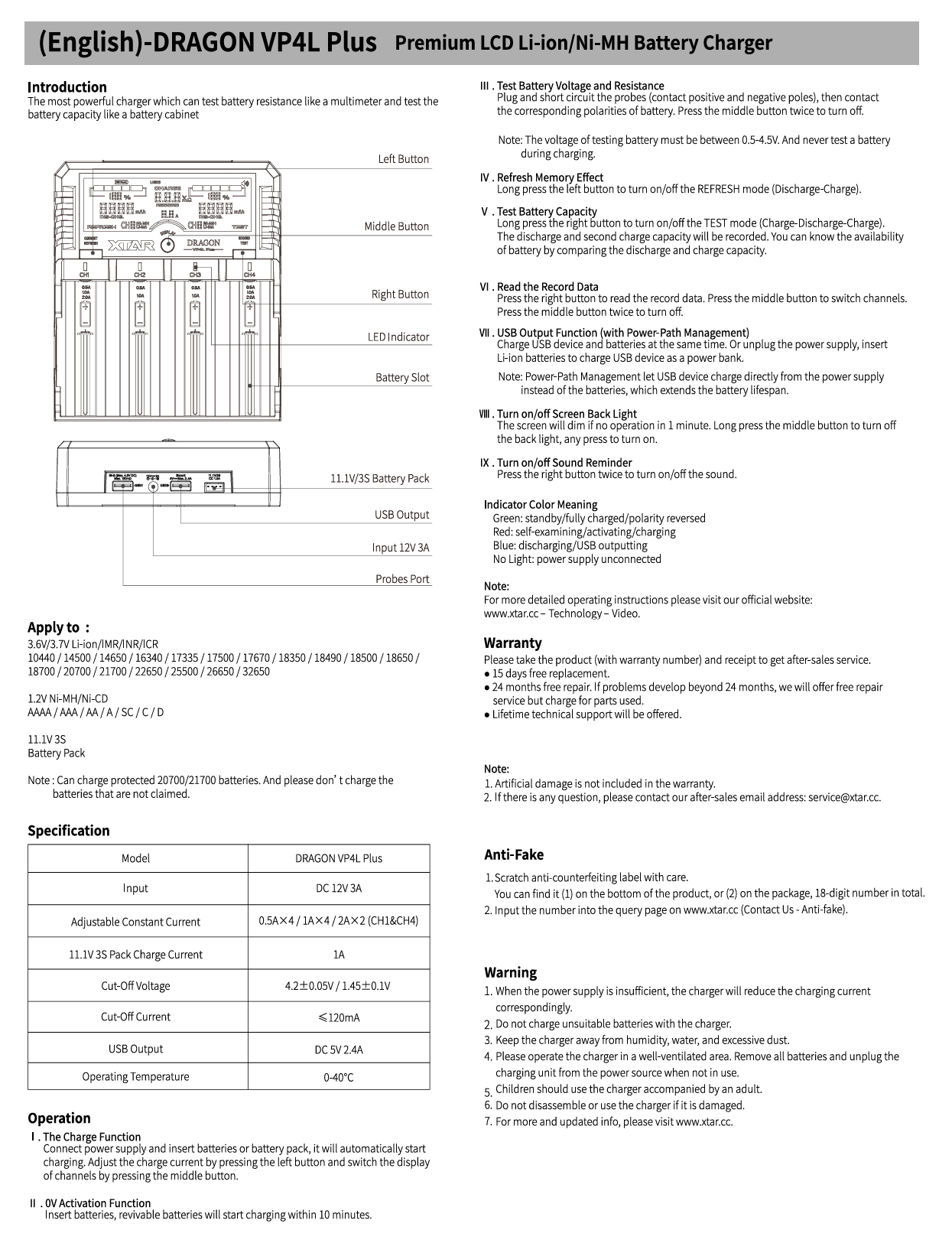

- User Manual
- (PDF version of this user manual is located on VP4 Dragon product page)
