Orbtronic

18650 3950mAh Protected Battery Button Top Rechargeable Li-ion 3.7V Orbtronic-For High Performance Flashlights

MPN:
ORB-3950-P
Availability:
IN STOCK-Usually ships on the same business day
Minimum Purchase:
2 units
Bulk Pricing:
Buy in bulk and save
FREE BATTERY CASE | Holder:

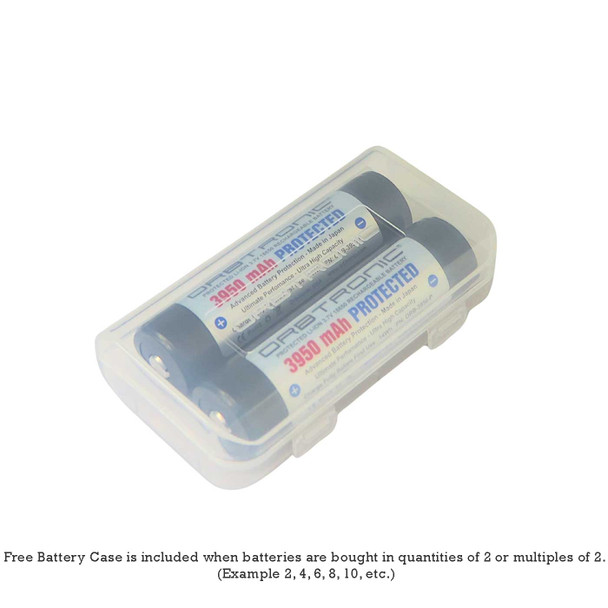

Free Battery Case is included when batteries are bought in quantities of 2 or multiples of 2. (Example 2, 4, 6, 8, 10, etc.)

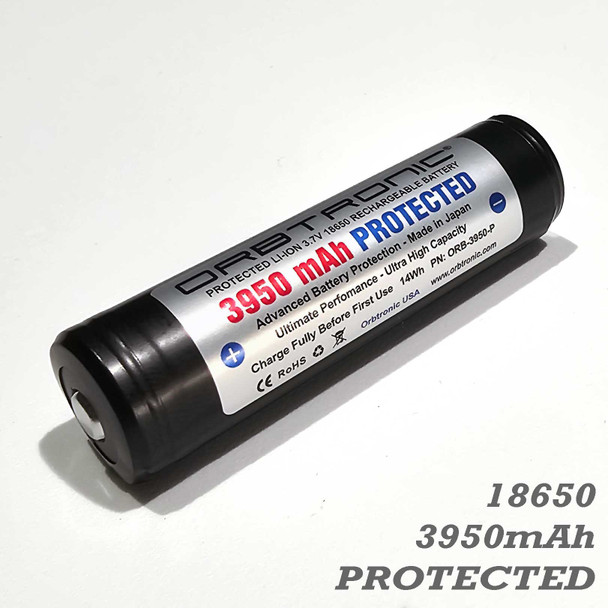

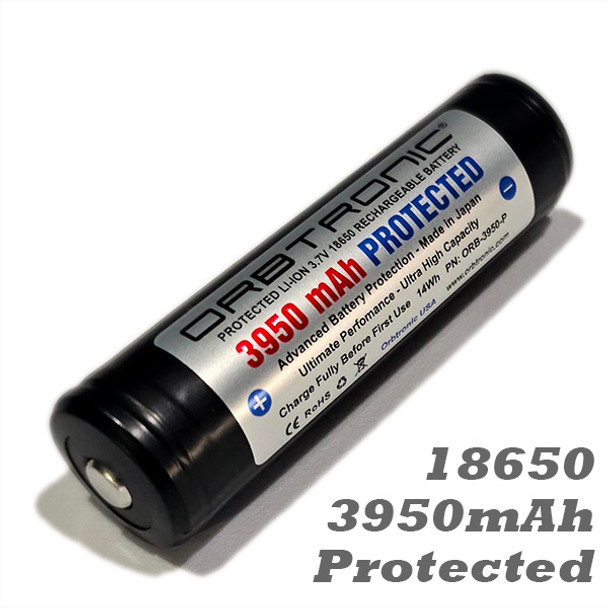

  • 18650 Protected li-ion battery 3950mAh-4000mAh

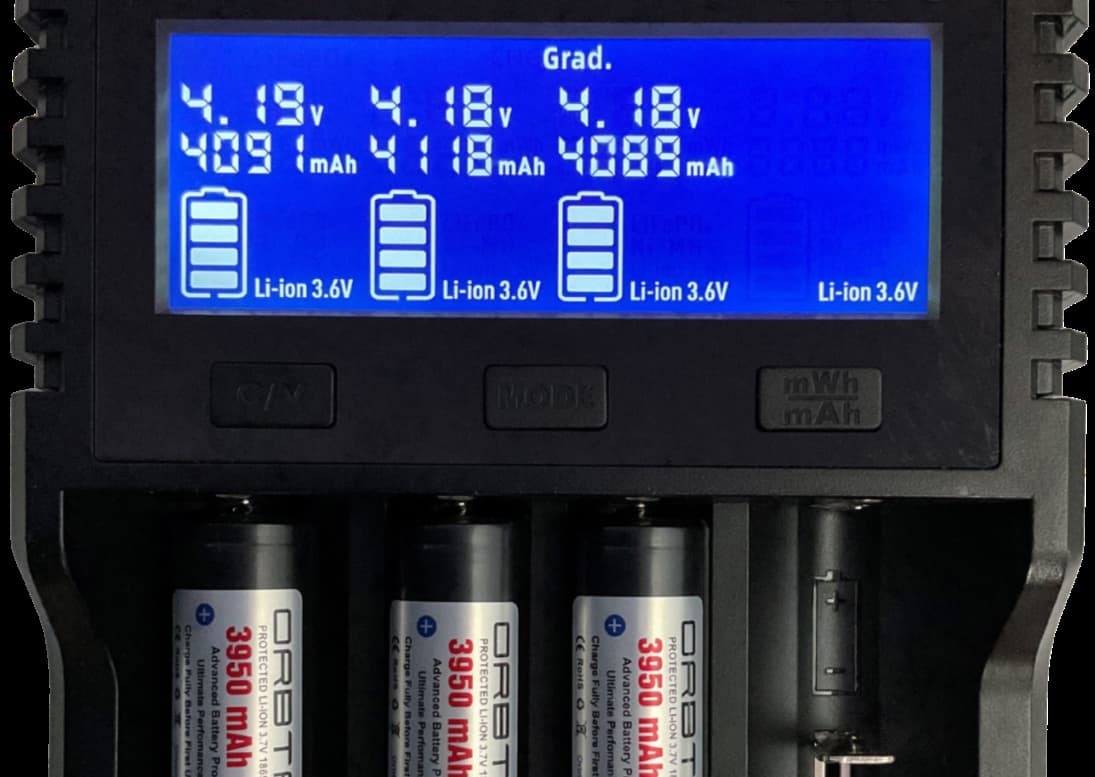

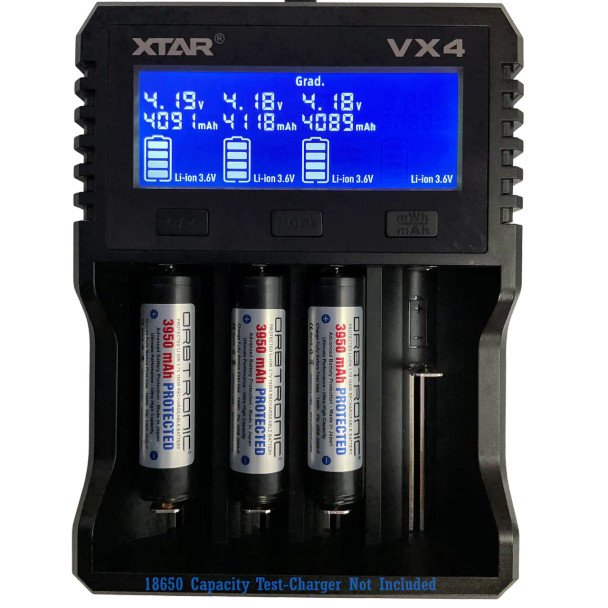

  • 18650 battery capacity test discharge Orbtronic

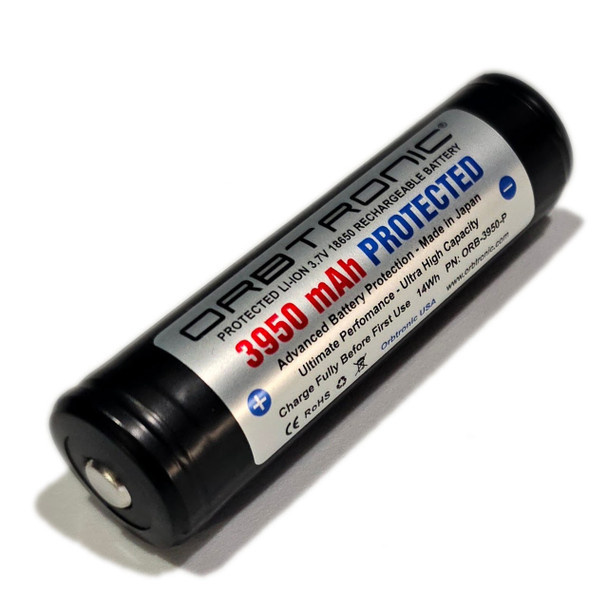

  • 18650 Battery Orbtronic Protected li-ion 3950mAh-4000mAh
  • 18650 Battery Case Protected li-ion 3950mAh-4000mAh
  • 18650 Protected li-ion battery 3950mAh-4000mAh
$15.99

Description

 18650 Battery Protected Best For Flashlights.

 New, and Powerful: Ultra High Capacity 3950 mAh.

 Button Top
 Advanced Safety Electronic Protection - Made in Japan

Orbtronic Protected 18650 batteries stand out as a superior choice for high-performance LED flashlights.

They seamlessly integrate with any device designed to work with protected button-top 18650 battery cells.

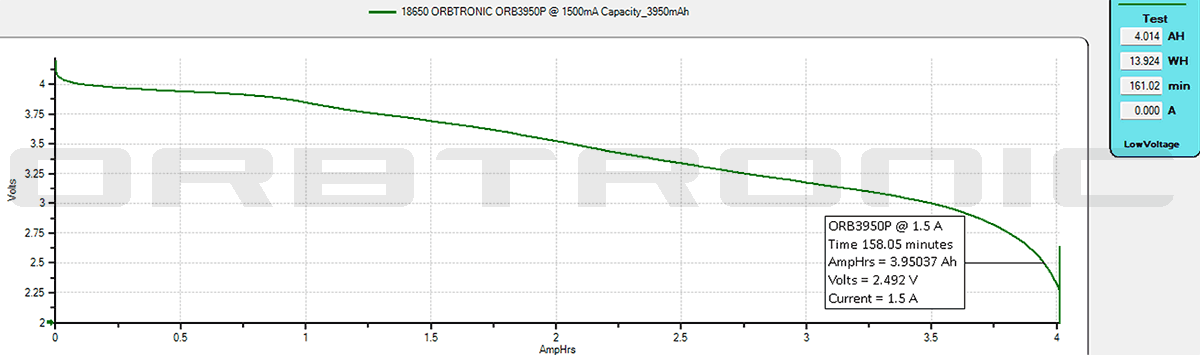

18650-test-discharge-capacity-orbtronic-orb3950p-3950mAh

Highly recommended Li-ion chargers compatible with Protected Lithium-ion batteries:

Recommended charger for Protected Li-ion 18650 Batteries
Li-ion charger for 18650 protected batteries with 4 charging channels.
Li-ion 18650 battery charger with 8 charging channels.

Battery Specifications:
Rated Capacity (Ah): 3.95 Ah (3950mAh)
Type /size: 18650 Protected
Nominal Voltage (V): 3.6V - 3.7V

Charging:
Charging Max. Voltage (V): 4.2 V
Charging Algorithm: CC/CV [Constant Current/Constant Voltage]
Recommended charging current: 1A - 2A
Max. Charging current: 3.5A
Charging Operating Temperature: 0 to 45°C max.

Discharging:
Max Continuous Discharging Current: 9A [ @ max. 45°C Cutoff ]
Discharging Operating Temperature Range: -15 to 60°C max.
Max. battery life span: 500 charging cycles or 5 years
Discharging cut-off voltage: 2.5V

Dimensions:
Diameter (mm): 18.6 mm (+/- 0.03)
Height (mm): 68.9 mm (+/- 0.03)
Weight (g): 49 g

Chemical Composition: Li-ion (Lithium-Ion) Hybrid
Rechargeable: Yes

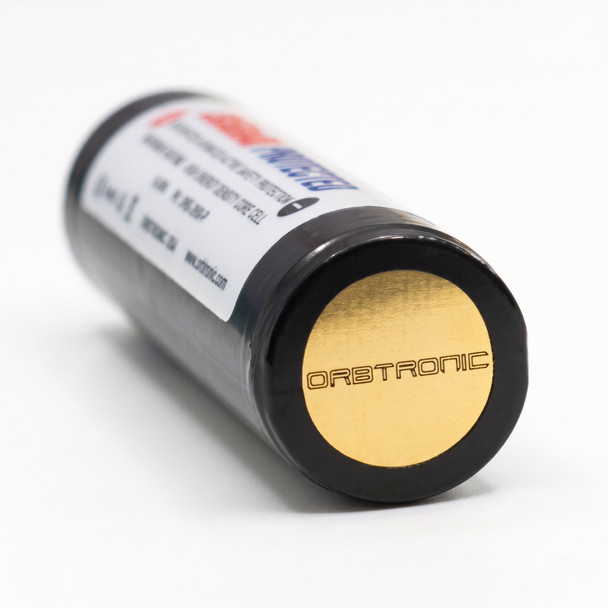

Positive terminal: Welded Button Top
Electronic Advanced Safety Protection: Yes, Welded PCB

Part No.: ORB-3950-P

Protection specs:
Over-load (Activated @ above 13A)
Over-charge (Activated @ 4.29V)
Over-discharge (Activated @ below 2.35V)
Short circuit protection

Important:

Reading the safety instructions and warnings for Li-ion batteries is crucial before their use, handling, storage, or charging.

Li-ion SAFETY GUIDE and WARNINGS


Vape mod (e-cig) users, please note: the Orbtronic protected 18650 battery is designed for LED flashlights, not for e-cig vape devices. We advise against purchasing it for such use.



What is in the box?

  • Orbtronic Protected 18650 3950mAh rechargeable battery.
  • Free Battery Case is included when batteries are bought in quantities of 2 or multiples of 2. (Example 2, 4, 6, 8, 10, etc.)
  • Protective Li-ion packaging is specifically designed to ensure the safe handling and transportation of batteries.

The price listed applies to a single battery cell.
