Ultra High-Drain 21700 Battery Cell | Flat Top | Unprotected | Orbtronic ORB-5000-HD
Created for extreme performance, the Orbtronic ORB-5000-HD is the definitive choice for professionals building battery packs. It masterfully combines a massive 5000mAh capacity with a staggering 45A maximum discharge capability, providing the raw power and extended runtime required for the most demanding applications like power tools, robotics, and custom DIY / EV projects.
Technical Specifications
Base Specifications
- Model: ORB-5000-HD

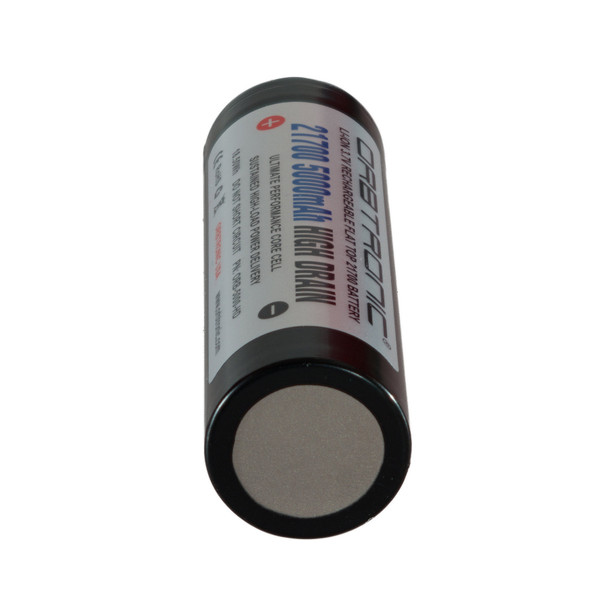

- Size / Type: 21700 / Li-ion / Flat Top
- Standard Capacity: 5000mAh
- Rated Capacity: 4800mAh (Minimum)
- Nominal Voltage: 3.6V
- Internal Impedance: ≤ 15mΩ (AC 1kHz)
Charging Specifications
- Method: CC/CV
- Max Charge Voltage: 4.20V
- Max Continuous Charge Current: 6A
- Standard Charge: 1-2A 250mA cut-off
- Rated (Fast) Charge: 6A, 100mA cut-off
Discharging Specifications
- Max Continuous Discharge: 25A
- Max Continuous Discharge (w/ 80°C Cutoff): 45A
- Discharge Cut-off Voltage: 2.5V
- Capacity at 15A / 20A Discharge: 95%
- Capacity at 30A Discharge: 90%
Dimensions & Weight
- Dimensions: 21.24mm (D) x 70.61mm (H)
- Weight: 71.0g (Max)
Operational Temperatures & Cycle Life
- Charge Temperature: 0°C to 60°C
- Discharge Temperature: -20°C to 80°C
- Storage Temperature: 0°C to 24°C
- Cycle Life (25A): ≥60% Capacity after 250 Cycles
For Experienced Builders Only
This is an unprotected 21700 high drain battery cell. It is intended for use within a protected battery pack equipped with a proper Battery Management System (BMS). Not for use in vape or e-cigarette devices.
What's In The Box?
- One (1) Orbtronic 21700 ORB-5000-HD Cell

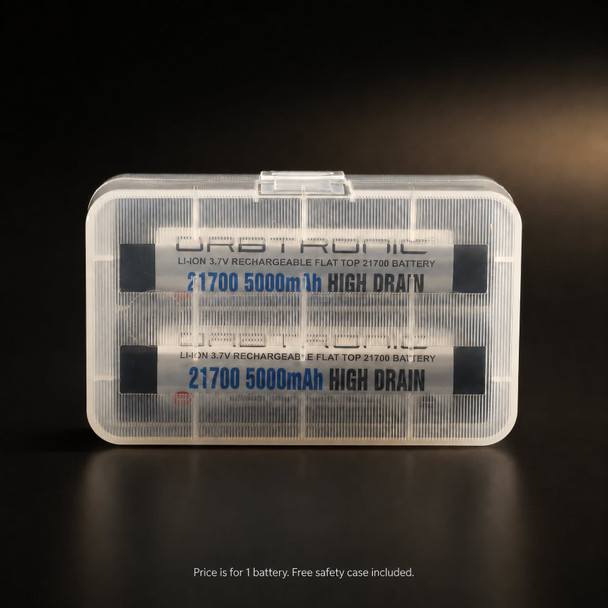

- One (1) Protective Safety Case
- Professional, secure packaging
Price is for one 21700 cell.
✈️ Fast Shipping from Florida, USA
Same-day dispatch on orders placed before 3 PM EST.
Yes, we ship on Saturdays too | 1 PM EST cutoff time.
⚠️ WARNING + Li-ion BATTERY SAFETY INSTRUCTIONS:
IMPORTANT BATTERY SAFETY INSTRUCTIONS AND WARNINGS | ALL LI-ION BATTERY USERS MUST READ & FOLLOW BEFORE USING LITHIUM-ION BATTERIES.https://www.orbtronic.com/rechargeable-battery-safety
Failure to read, and follow Li-ion safety instructions, and warnings may result in fire, personal injury, and property damages if the battery is charged and/or used improperly.
- DO NOT SHORT CIRCUIT. Short circuits may cause a fire and injury!
- Charge battery fully to 4.2V before first use.
- Use a high-quality charger specifically designed to charge Li-ion batteries.
- Do not charge unattended.
- Always keep your battery that is not in use inside the plastic battery holder (container).
- Do not keep a bare battery in your pocket, purse, or anywhere together with other metal (conductive) objects.
- Never attach any metal moving part |magnet| to the top positive or the bottom negative battery contact.
- DO NOT USE WITH E-CIGARETTE, VAPORIZER, (E-cig, vape, mod) OR SIMILAR DEVICE
- Stop using the battery with damaged PVC tube (wrap) or terminal insulator immediately.
- If the battery is damaged in any way stop using it immediately.
- Never discharge a Li-ion battery at a rate exceeding the maximum discharge current specified for that battery.
- Never use force to install (insert) Li-ion battery.
- Do not use old, and new batteries together.
- Do not solder directly onto the battery.
- Do not immerse in any liquid.
- Do not drop the battery. Always keep it in a plastic protective holder.
- Do not place the battery in high-pressure containers, microwave ovens, or on induction cookware.
- Immediately discontinue use of the battery if, while using, charging or storing the battery, the battery emits an unusual smell, feels hot, changes color or shape, or appears abnormal in any other way.
- Do not carry, or store the batteries together with hairpins, necklaces, or other conductive metal objects.
- Use only high-quality battery Li-ion charger (CC/CV 4.2V max).
- Do not expose to heat.
- Do not disassemble, or modify the battery.
- Keep the battery away from children, and pets.
- Never charge, or store the batteries inside your car in extreme temperature. Extreme temperatures (low or high) might ignite the battery, and cause a fire.
- Do not short (connect) positive, and negative battery terminals (contacts) intentionally, or unintentionally.
- Never charge the battery over 4.25 Volts (properly charged li-ion battery is 4.2 Volts / full charge).
- Do not reverse the positive (+) and negative (-) terminals when charging, or using the battery.
- Never charge the battery at a current exceeding manufacturer-specified charging current.
- Do not expose the battery to water or salt water, or allow the battery to get wet.
- You must verify polarity before connecting the battery to the host device (or charger).
- Never completely discharge the Li-ion battery ( below 2.5V under load ).
- After the battery is discharged > don't leave it discharged > charge battery as soon as possible (10 min. rest time).
- It is your responsibility to determine that your charger and host device works properly.
- On (battery electrolytes) exposure to skin, flush with water immediately.
- If eye exposure occurs, flush with water for 15 minutes, and seek emergency care immediately.
PROHIBITED ACTIONS:
- Do not short-circuit terminals.
- Do not use if cell wrap is damaged.
- Do not use in vape/e-cigarette device
- Do not solder directly onto the cell.
- Do not keep with metal objects (keys, coins).
- Do not disassemble, crush, or incinerate.
- Do not expose to liquids or extreme temperatures.
REQUIRED PRACTICES:
- Use a high-quality charger designed for Li-ion cells.
- Always store in a plastic, protective case.
- Never charge above 4.2V or discharge below 2.5V under load.
- Inspect cells for damage before every use.
- Keep away from children and pets.
What is short circuit?
The situation when battery positive (+) and negative (-) connect. The current will become extremely high because there is no resistance in the path to limit current flow. This Short circuit will result in dangerously high temperature which may cause a fire.
Warning:
The use of any unprotected li-ion cylindrical battery as a stand-alone device, including with e-cigarettes, vaporizer mods or other products, constitutes a DANGEROUS misuse of the battery cells that poses a SERIOUS RISK of personal injury or property damage. These cells are only for prototyping with proper electronic protection circuits, and not for stand-alone use.
Warning:
These are high discharge current & high capacity Li-ion batteries. If mishandled or mistreated, these batteries can cause you SERIOUS INJURY. USE AT YOUR OWN RISK.
